Ultrasound Transceiver
How it works:

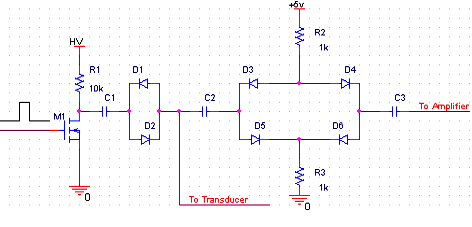

A transceiver consists of a transmit and a protection circuit. Diode D1 & D2 have two functions. In addition to shut down the transmit pulse quickly when it drops to very low voltage, it also provides an open circuit to the transmitter for small echo signal from transducer. The protection circuit includes D3-D6 and R2-R3. When there is no input, D3-D6 are all open. The voltage at D3-D5 joint is the same as that at D4-D6.
When there is a small positive voltage signal comes in and causes input voltage at right side of C2 to increase but less than +4.3v, the voltage at R3 will increase accordingly and thus the output voltage at left side of C3. The output voltage only increases when D4 and D6 are open. It will stop at 4.3v no matter how high is the input.
When there is a small negative voltage signal comes in causing input voltage at right side of C2 to decrease but still higher than 0.7v, the voltage at R3 will drop accordingly and thus the output at right side of C3. The same as above mentioned, the output will stop at 0.7v no matter how low the input voltage goes.
