BioSono provides a cyberspace (www.biosono.com) where researchers, engineers, and students can find useful reference and educational materials, conduct acoustic simulation, post questions on design and development, and get answers. The online KLM based transducer acoustic stack simulation, which is currently free, can help you choose piezoelectric, matching and backing material, and a tuning electrical network. The output from the model includes electrical transmit impedance, acoustic receive impedance, and the impulse or pulse-echo response. The ultrasound beam profile simulation provides the calculated transmitted ultrasound pressure field under certain excitation for a given transducer aperture in a number of different geometrical configurations, including circular elements (flat and concave piston), rectangular elements, linear arrays, convex arrays, and 2D arrays. The simulation is based on Field II, which is a free program that utilizes the spatial impulse response method, and has been validated by many researchers for accuracy. In addition to the web based acoustic simulation, we also provide pulse-echo system, transducers, and customized design and develop services.

Free Version Beam Simulation

Beam Profile Simulation Simulation List Axial, Lateral 1D Beam Profile No Parameter Variation Vary Depth Vary Frequency Vary Transducer Bandwidth 2D Beam Profile Axial-Lateral, Elevation=0 Axial-Lateral, Vary Elevation Axial-Elevation, Lateral=0 Axial-Elevation, Vary Lateral Lateral-Elevation at Focus Lateral-Elevation, Vary Axial Customized Simulation Examples 1D Beam Profile 2D Beam Profile Pulse Propagation Images

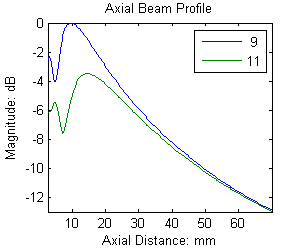

Axial, Lateral 1D Beam Profile: Vary Center Frequency This simulation provides one-dimensional axial and lateral beam profiles at up to 5 different center frequencies. Output Results Axial Profile Lateral Profile Simulation Scheme Excel Data File This simulation generates 3 figure files and one MicroSoft Excel file including all the beam data. The files will be sent to you by email. Click to see Default Input Parameters for this Simulation Click the figure to see the standard size Order Input Information (Price: 199$): Transducer Aperture: DIV APrt Loading... Flat Round Concave Round Flat Doughnut Concave Doughnut Flat Rectangle Concave Rectangle Flat Linear Array Radius mm Curvature Radius mm Frequency: MHz
