Vibration and Wave
Vibration and Wave in physics

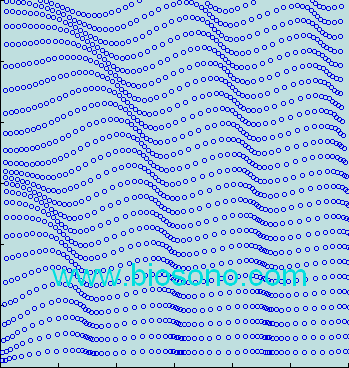

A vibration source in a mechanical medium will cause wave propagation.
Ultrasound is a mechanical wave, cannot exist in vacuum.
Ultrasound transfer energy within the
medium,
does not transfer mass.
Longitudinal wave: particle movement in the same direction to the wave propagation.
compression
:
Ultrasound propagation causes local medium density and pressure varying with time. The density or pressure will increase when it is compressed.
rarefaction
:
When low pressure pass through, the local density will
drease
.
Transverse wave: particle movement in the direction perpendicular to the wave propagation.
