Ultrasound Transducer Simulation Page
BioSono provides a cyberspace (www.biosono.com) where researchers, engineers, and students can find useful reference and educational materials, conduct acoustic simulation, post questions on design and development, and get answers. The online KLM based transducer acoustic stack simulation, which is currently free, can help you choose piezoelectric, matching and backing material, and a tuning electrical network. The output from the model includes electrical transmit impedance, acoustic receive impedance, and the impulse or pulse-echo response. The ultrasound beam profile simulation provides the calculated transmitted ultrasound pressure field under certain excitation for a given transducer aperture in a number of different geometrical configurations, including circular elements (flat and concave piston), rectangular elements, linear arrays, convex arrays, and 2D arrays. The simulation is based on Field II, which is a free program that utilizes the spatial impulse response method, and has been validated by many researchers for accuracy. In addition to the web based acoustic simulation, we also provide pulse-echo system, transducers, and customized design and develop services.
ultrasound beam simulation longitudinal view
ultrasound beam simulation cross view
Ultrasound Calculation
Ultrasound Transducer RLC Model:

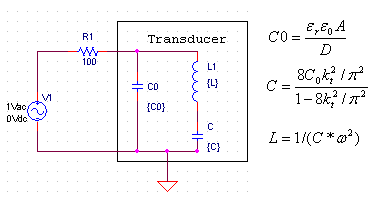

The impedance characteristic of a piezoelectric ceramic based ultrasound transducer can be simulated with a RLC circuit as shown in the above figure. C0 is the static capacitance of the electrode coated ceramic disk. L and C are determined by the transducer Kt.

Center Frequency: MHz
Piezoelectric Ceramic Thickness:um
Dielectric Constant of PZT: ε0
Area of the Aperture: mm²
Kt

Three Parameters will be Calculated:
C0:
C:
L:
