Ultrasound Transducer Simulation Page
BioSono provides a cyberspace (www.biosono.com) where researchers, engineers, and students can find useful reference and educational materials, conduct acoustic simulation, post questions on design and development, and get answers. The online KLM based transducer acoustic stack simulation, which is currently free, can help you choose piezoelectric, matching and backing material, and a tuning electrical network. The output from the model includes electrical transmit impedance, acoustic receive impedance, and the impulse or pulse-echo response. The ultrasound beam profile simulation provides the calculated transmitted ultrasound pressure field under certain excitation for a given transducer aperture in a number of different geometrical configurations, including circular elements (flat and concave piston), rectangular elements, linear arrays, convex arrays, and 2D arrays. The simulation is based on Field II, which is a free program that utilizes the spatial impulse response method, and has been validated by many researchers for accuracy. In addition to the web based acoustic simulation, we also provide pulse-echo system, transducers, and customized design and develop services.
ultrasound beam simulation longitudinal view
ultrasound beam simulation cross view

Free Version Beam Simulation
Beam Profile Simulation

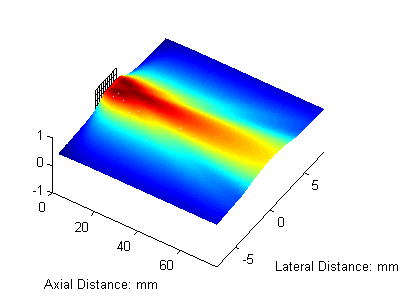

Axial-Lateral 2D Beam Profile
This simulation provides a 200x200 point two-dimensional beam profile in the axial-lateral plane with the elevation location equal to zero.

Output Results

  • A Microsoft Excel data file including all the 200x200 data points.

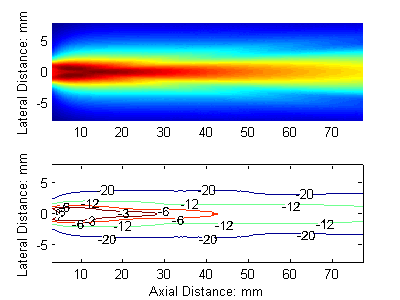

  • A image file inluding a color mapping and a contour drawing of the beam profile
All the files will be sent to you by email.
Click to see Default Input Parameters for this Simulation

Order Input Information (Price: 99$):

Transducer Aperture: DIV APrt Loading...

Curvature Radiusmm
